Integrating MTG SCEP with Microsoft Intune

This guide walks you through configuring Microsoft Intune to work with MTG SCEP for automated certificate enrollment on your devices.

Prerequisites: Azure AD administrative privileges and access to your MTG CLM environment.

Authorize Communication between MTG SCEP and Intune

Create Azure AD Application Registration

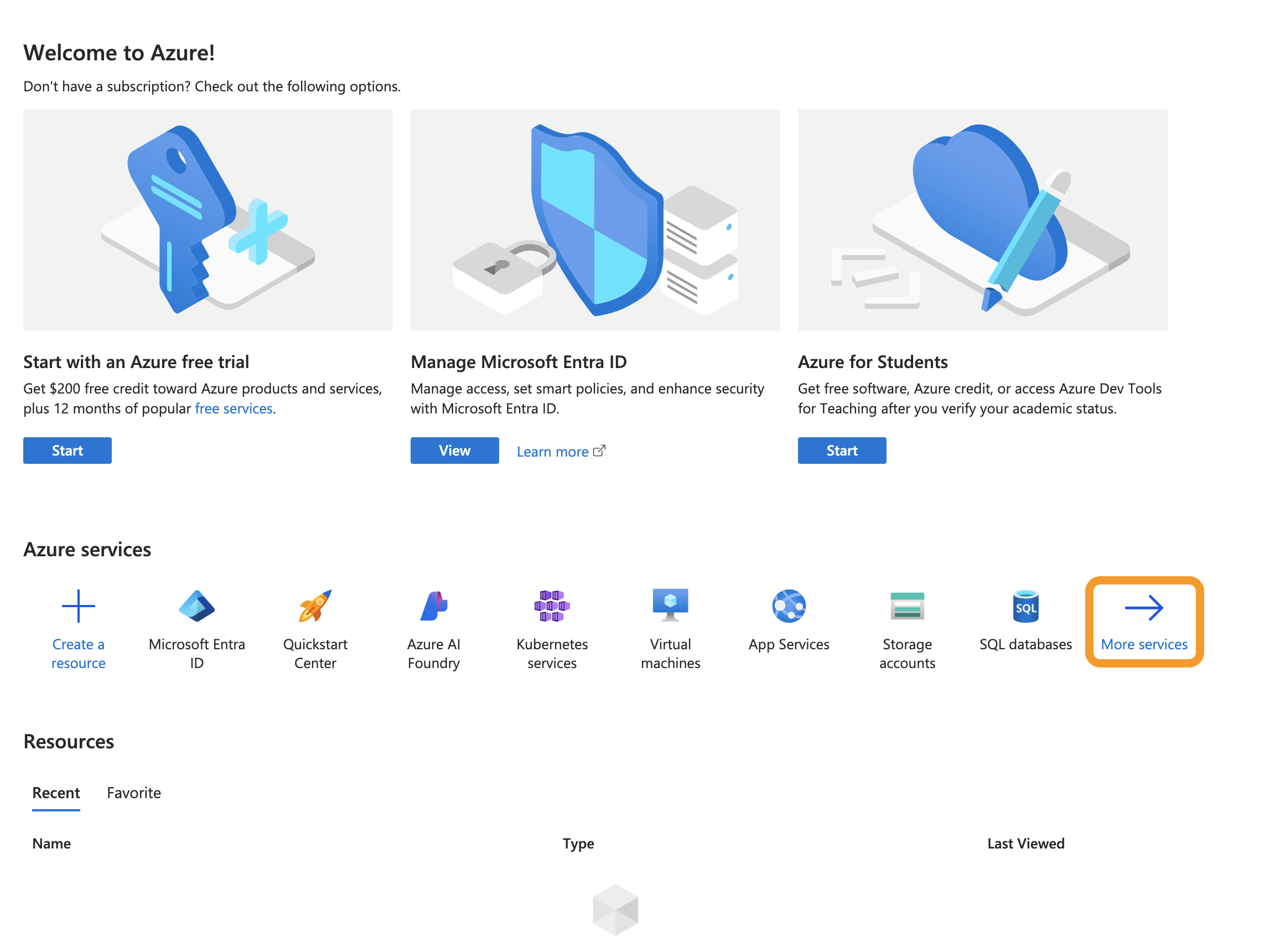

1. Access App Registrations

Click to reveal screenshot
azure1

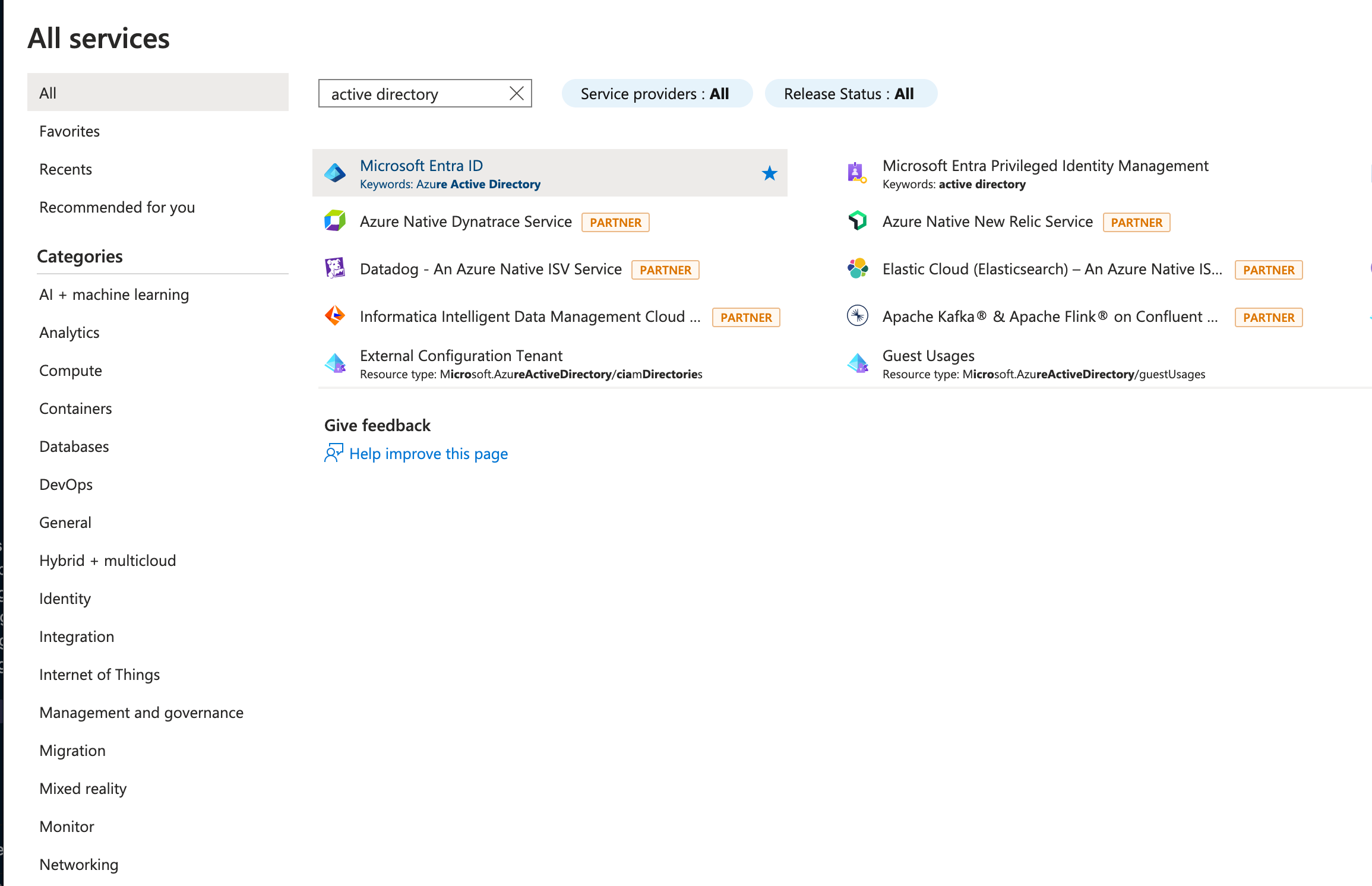

  • Navigate to Azure Active Directory.

Click to reveal screenshot
azure2

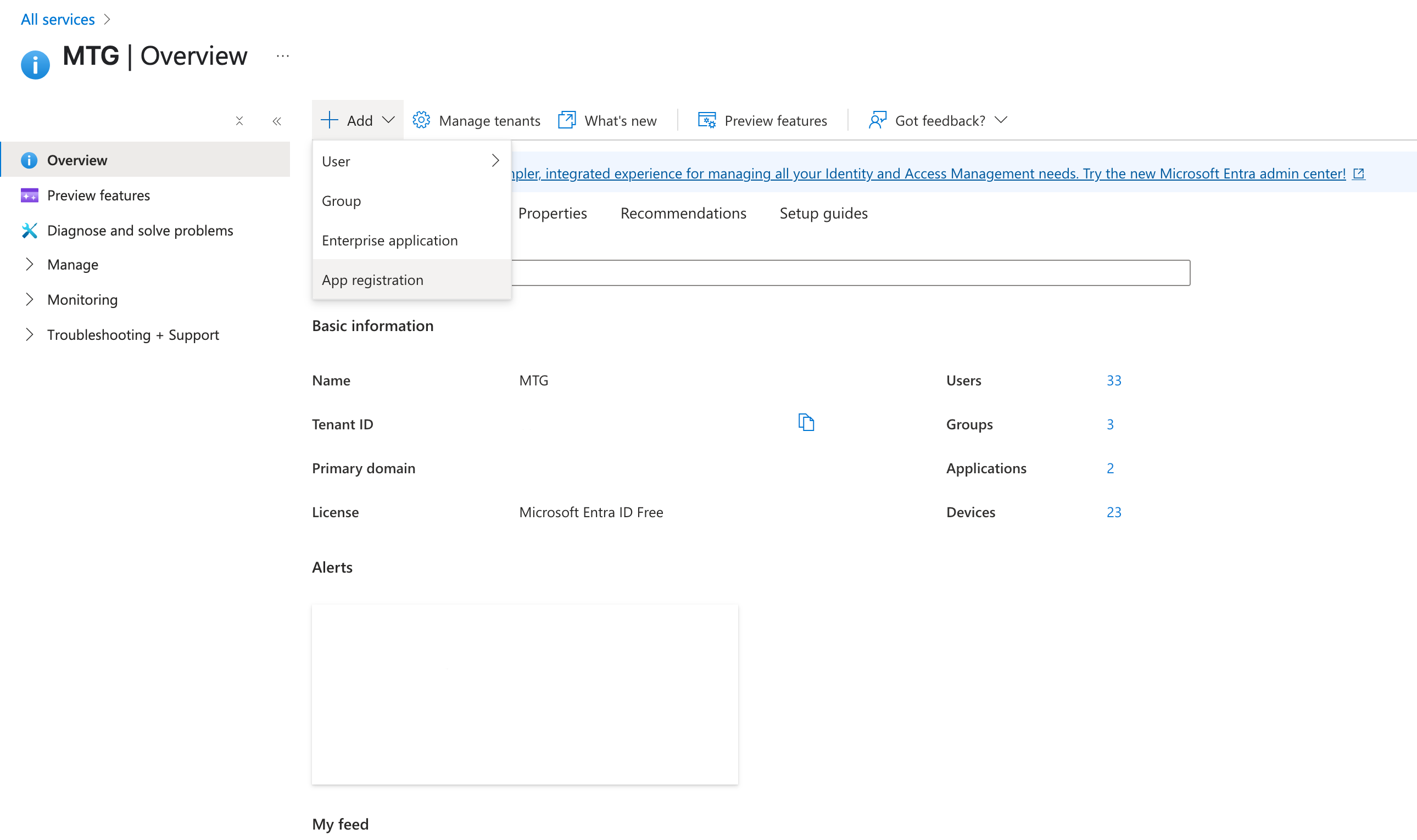

  • Select Add and then App registration.

Click to reveal screenshot
azure3

2. Configure Application Details

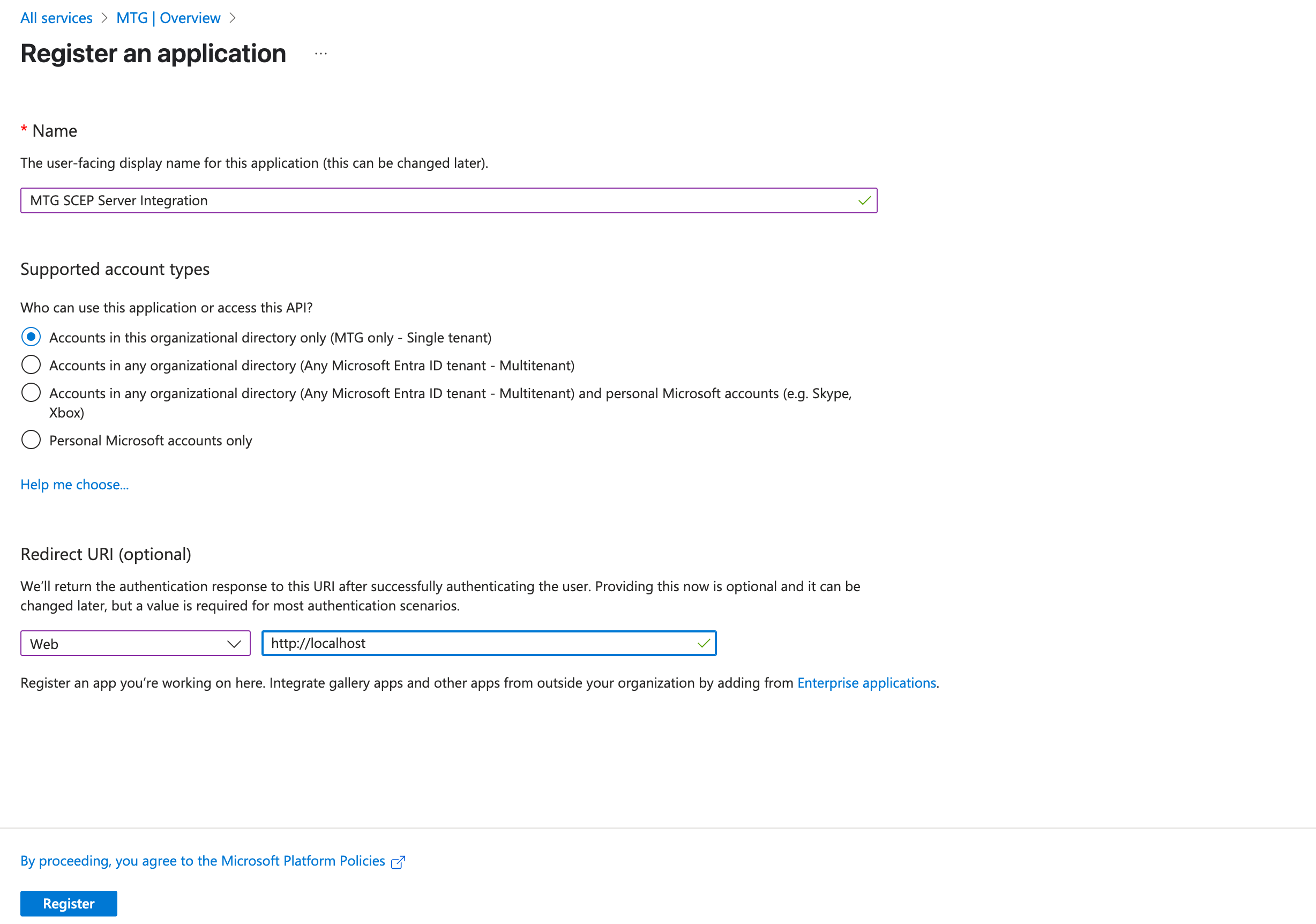

  • Name: Enter a descriptive name (e.g., "MTG SCEP Integration").

  • Supported account types: Select "Accounts in this organizational directory only".

  • Redirect URI: Choose "Web" and enter localhost.

  • Select Register.

Click to reveal screenshot
azure4

3. Capture Application Identifiers

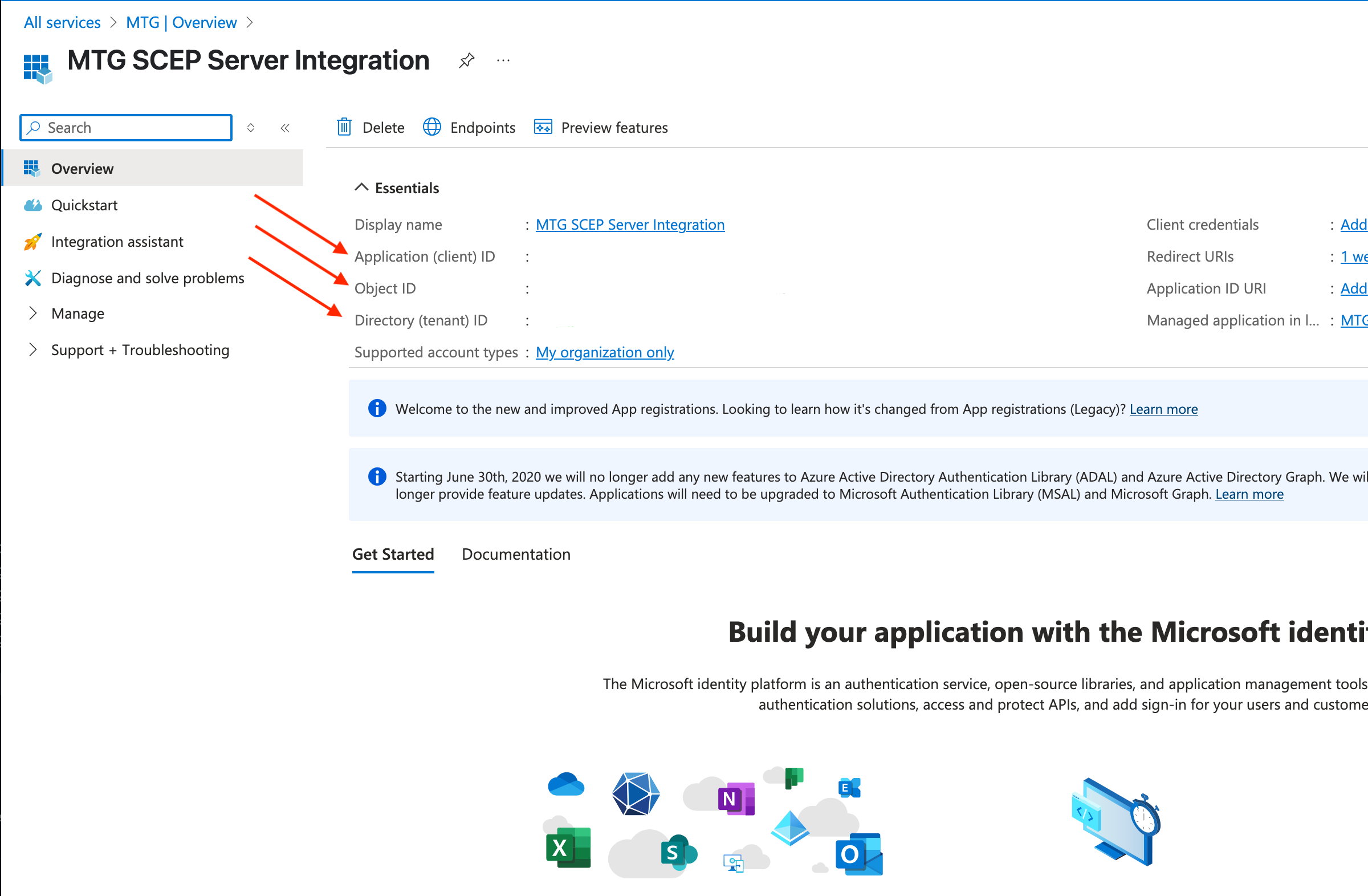

  • Record the Application (client) ID - this becomes your ms.intune.app.id parameter.

  • Record the Directory (tenant) ID for future reference.

Click to reveal screenshot
azure5

Generate Client Secret

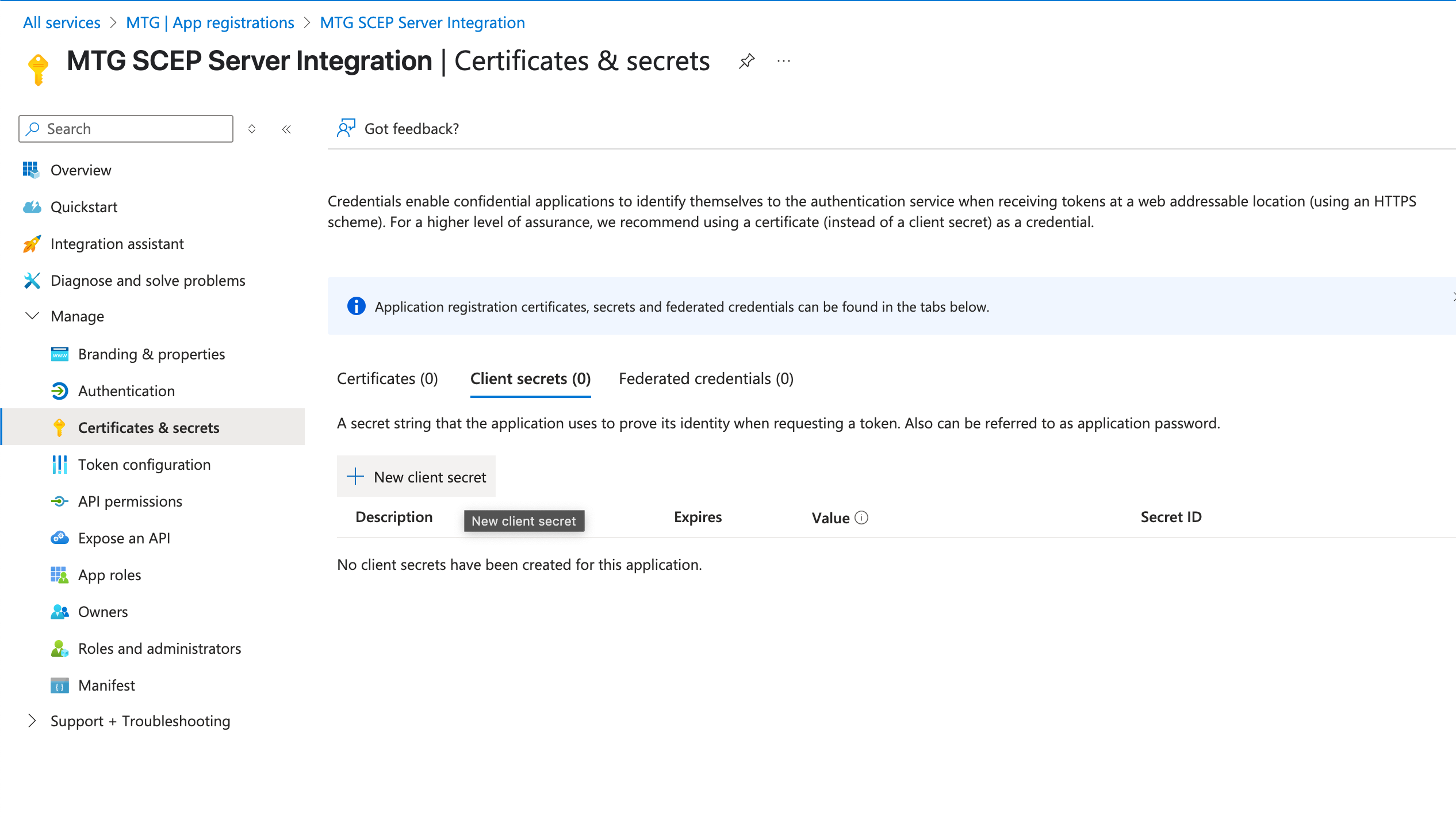

1. Access Certificates & Secrets

  • In your registered application, navigate to Certificates & secrets in the sidebar.

  • Select New client secret.

Click to reveal screenshot
azure6

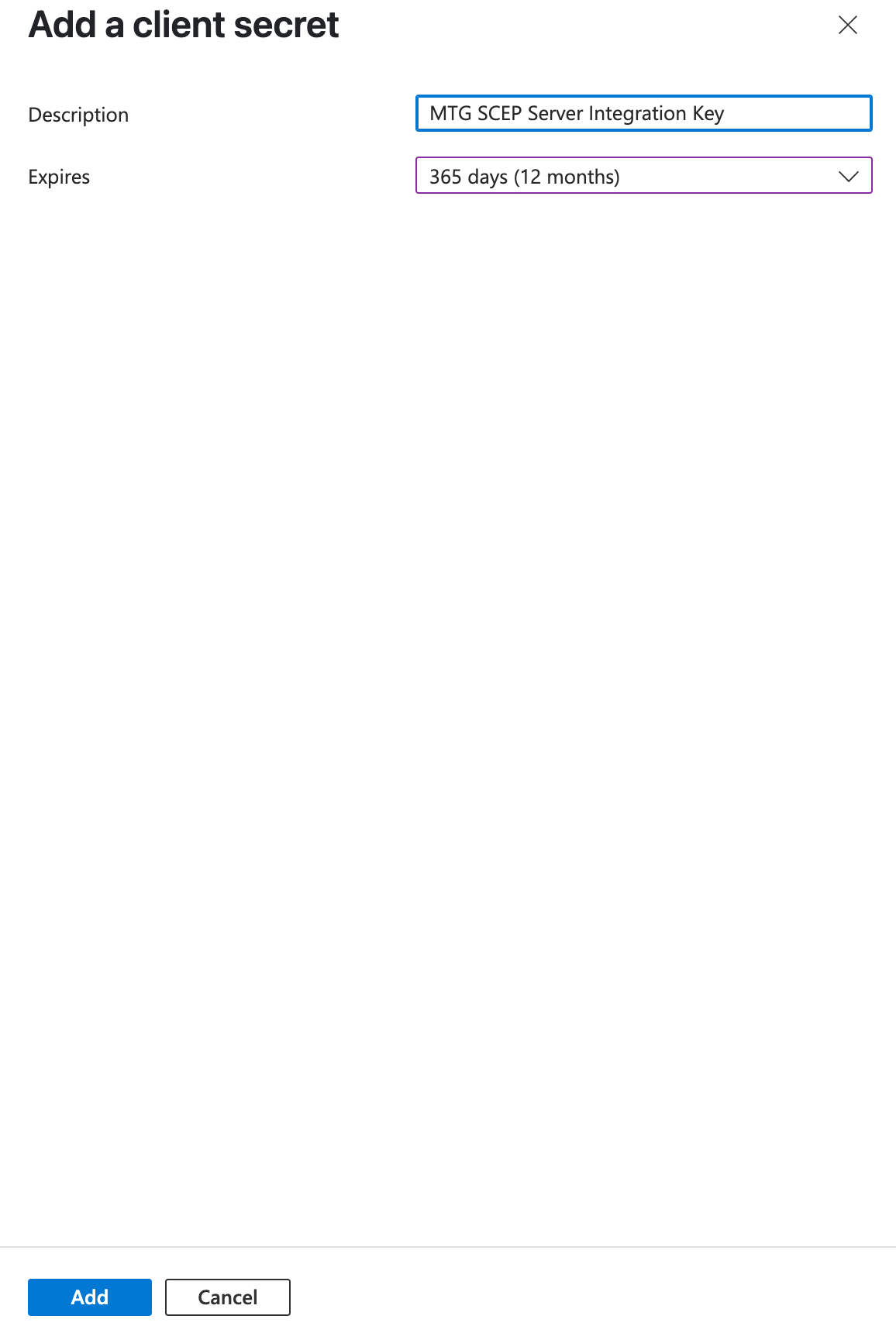

2. Configure Secret Parameters

  • Description: Enter "MTG SCEP Server Integration Key".

  • Expires: Select appropriate expiration timeframe.

  • Select Add

Click to reveal screenshot
300

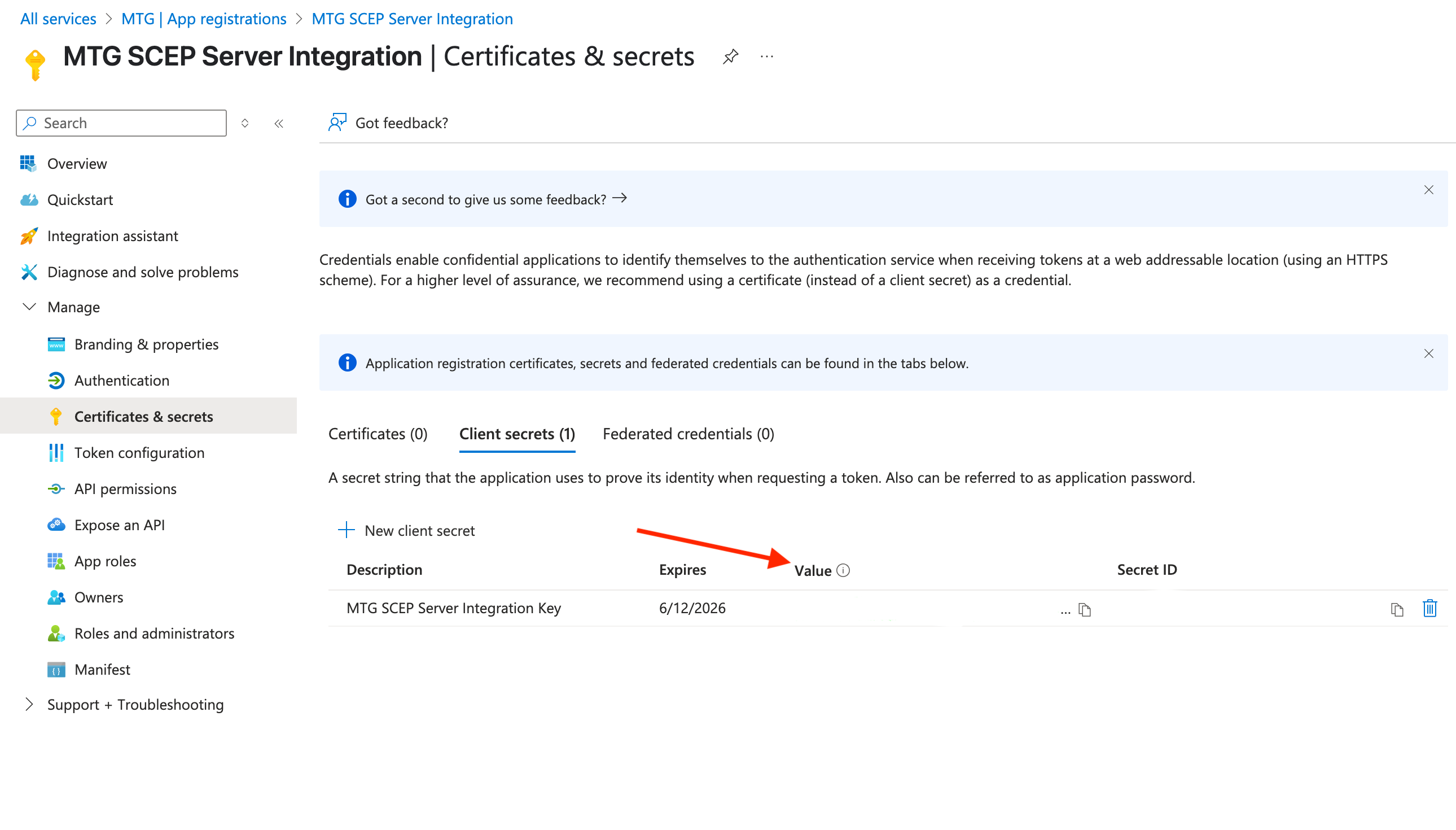

3. Secure Secret Value

  • Copy the secret Value immediately - this becomes your ms.intune.app.key parameter.

  • Store securely as this value cannot be retrieved again.

Click to reveal screenshot
azure8

Configure API Permissions

1. Add Required Permissions

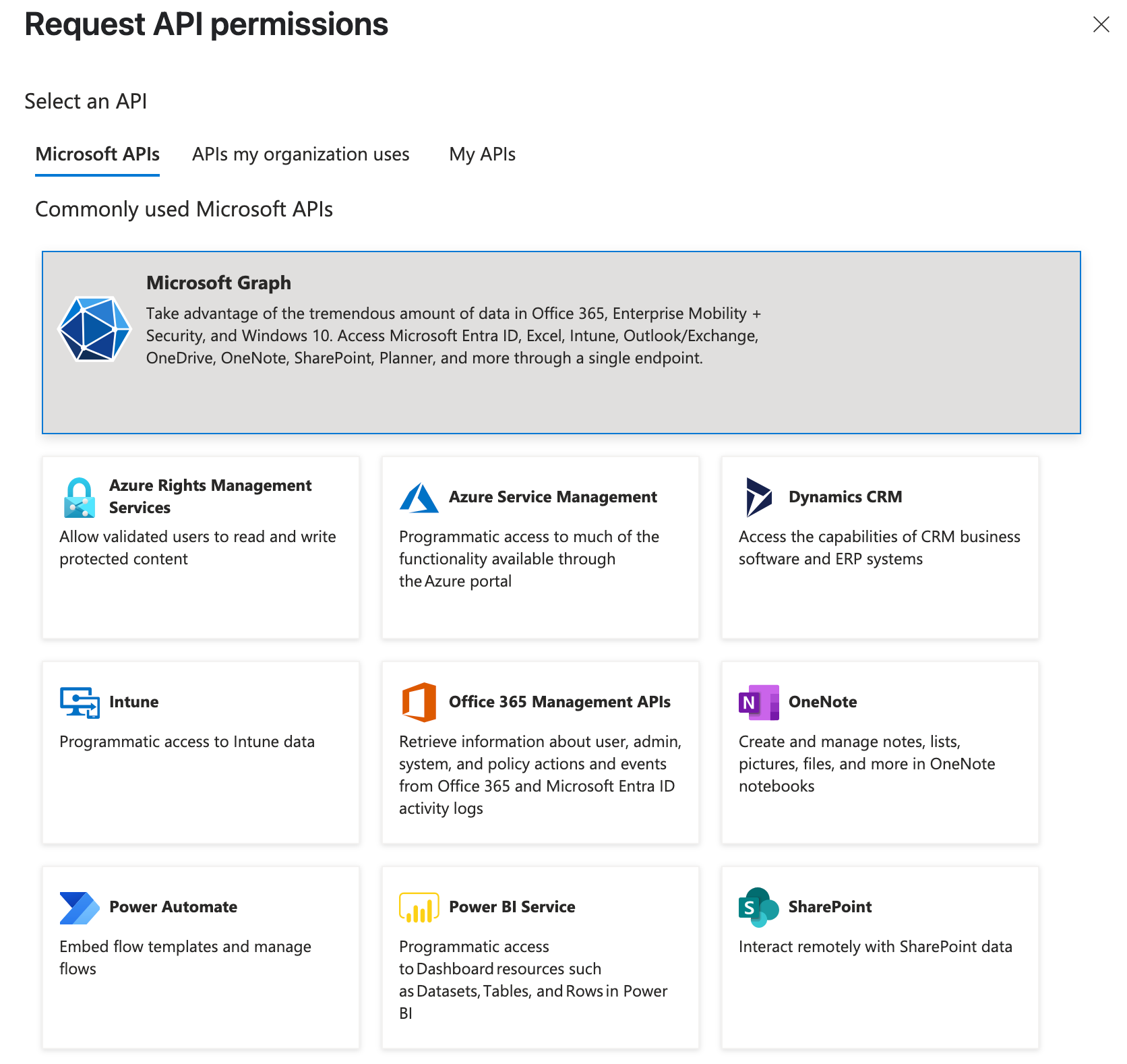

  • Navigate to API permissions.

  • Select Add a permission > Microsoft Graph.

  • Choose Application permissions.

Click to reveal screenshot
600

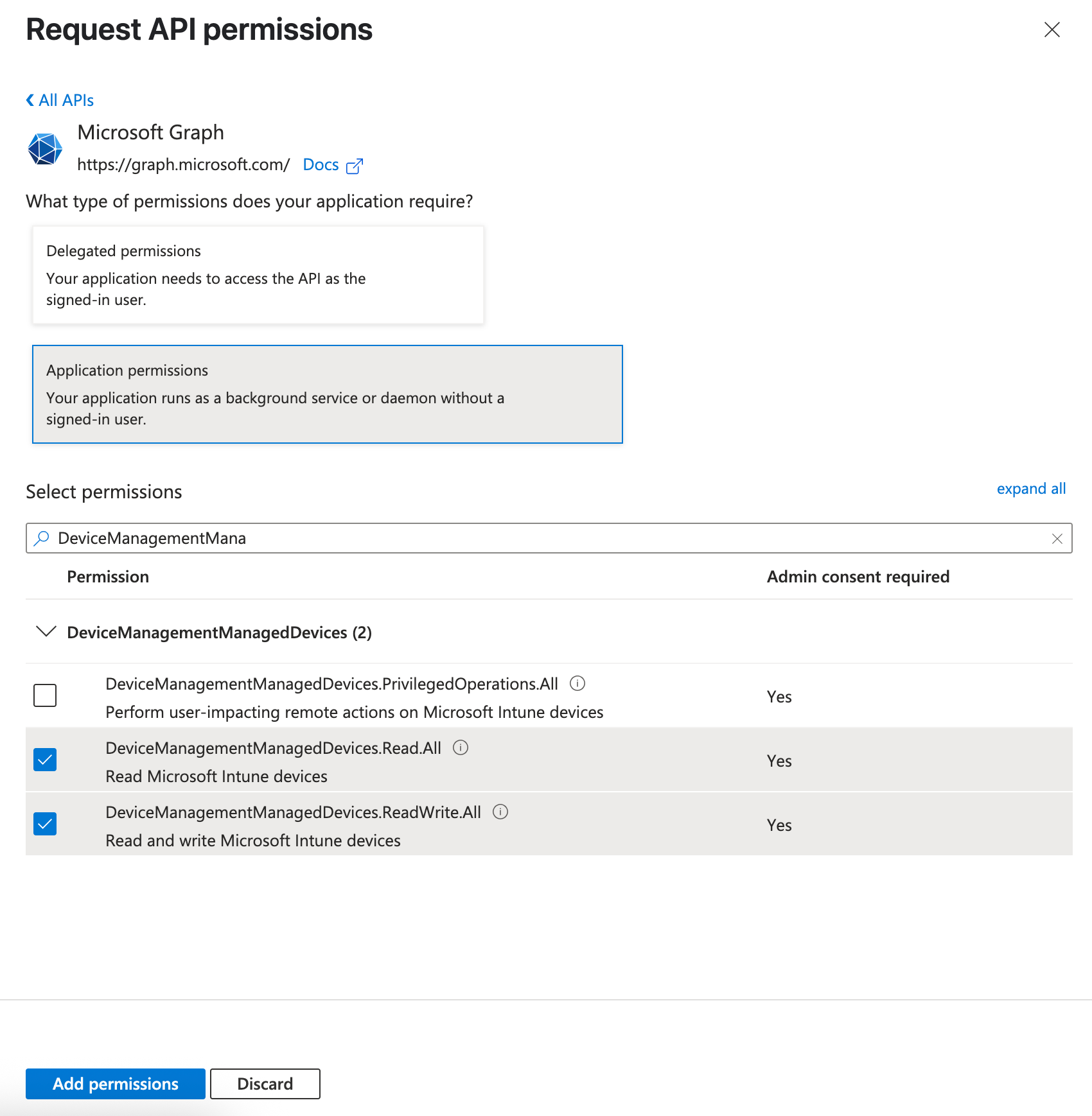

2. Select Specific Permissions

  • Search and add: DeviceManagementManagedDevices.Read.All.

  • Search and add: DeviceManagementConfiguration.Read.All.

  • Select Add permissions.

Click to reveal screenshot
azure9b

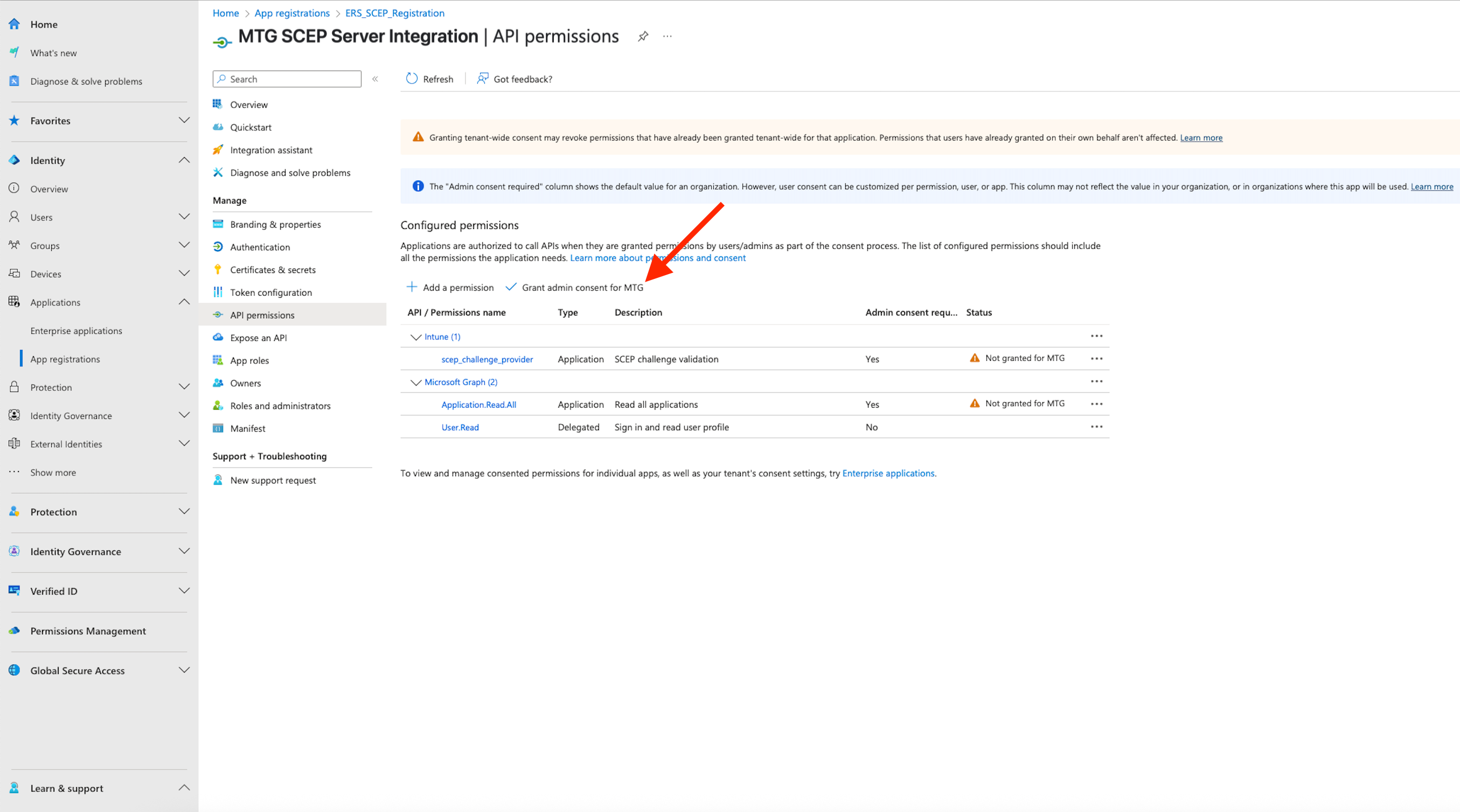

  • Select Grant admin consent for your organization

  • Confirm the consent action.

Click to reveal screenshot
azure9
Make sure to verify that these permissions align with your organization’s security policies and compliance requirements.

Configure MTG SCEP Settings

1. Update SCEP Parameters

  • Access your MTG CLM administration interface and navigate to the SCEP configuration section.

Required Configuration Parameters:

  • ms.intune.app.id: Your Azure AD Application (client) ID

  • ms.intune.app.key: Your generated client secret value

  • ms.intune.app.tenant: Your tenant identifier

Optional Configuration:

  • Configure proxy settings if your environment requires external connectivity.

  • Adjust logging levels for troubleshooting during initial deployment.

2. Verify SCEP Status

Service Status Check

  • Verify SCEP service is running.

  • Confirm network connectivity from Intune to your SCEP endpoint.

  • Test SCEP URL accessibility: scep.example.com/scep.

Certificate Authority Validation

  • Ensure your issuing CA is properly configured.

  • Verify certificate templates are available for mobile device enrollment.

  • Confirm CA certificate chain is complete.

Configure Intune for Your Mobile Device (iOS)

Mobile Device Enrollment Methods Overview

Microsoft Intune supports multiple enrollment methods for iOS devices, each with different management capabilities and user experiences. Certificate deployment approaches may vary depending on the enrollment method used.

Common Enrollment Methods:

  • Device Enrollment with Company Portal: BYOD method with visible management profiles. Users can see installed certificates and configuration profiles in device settings.

  • User Enrollment: Modern BYOD approach with privacy-focused management. Certificates deploy with minimal profile visibility to users.

  • Device Enrollment Program (DEP): Corporate-owned devices with automated enrollment. Certificate deployment typically occurs in background.

  • Apple Configurator: Manual enrollment method typically showing management profiles and certificates in device settings.

The steps below demonstrate the Company Portal enrollment approach. Certificate deployment configuration may require adjustments for other enrollment methods.

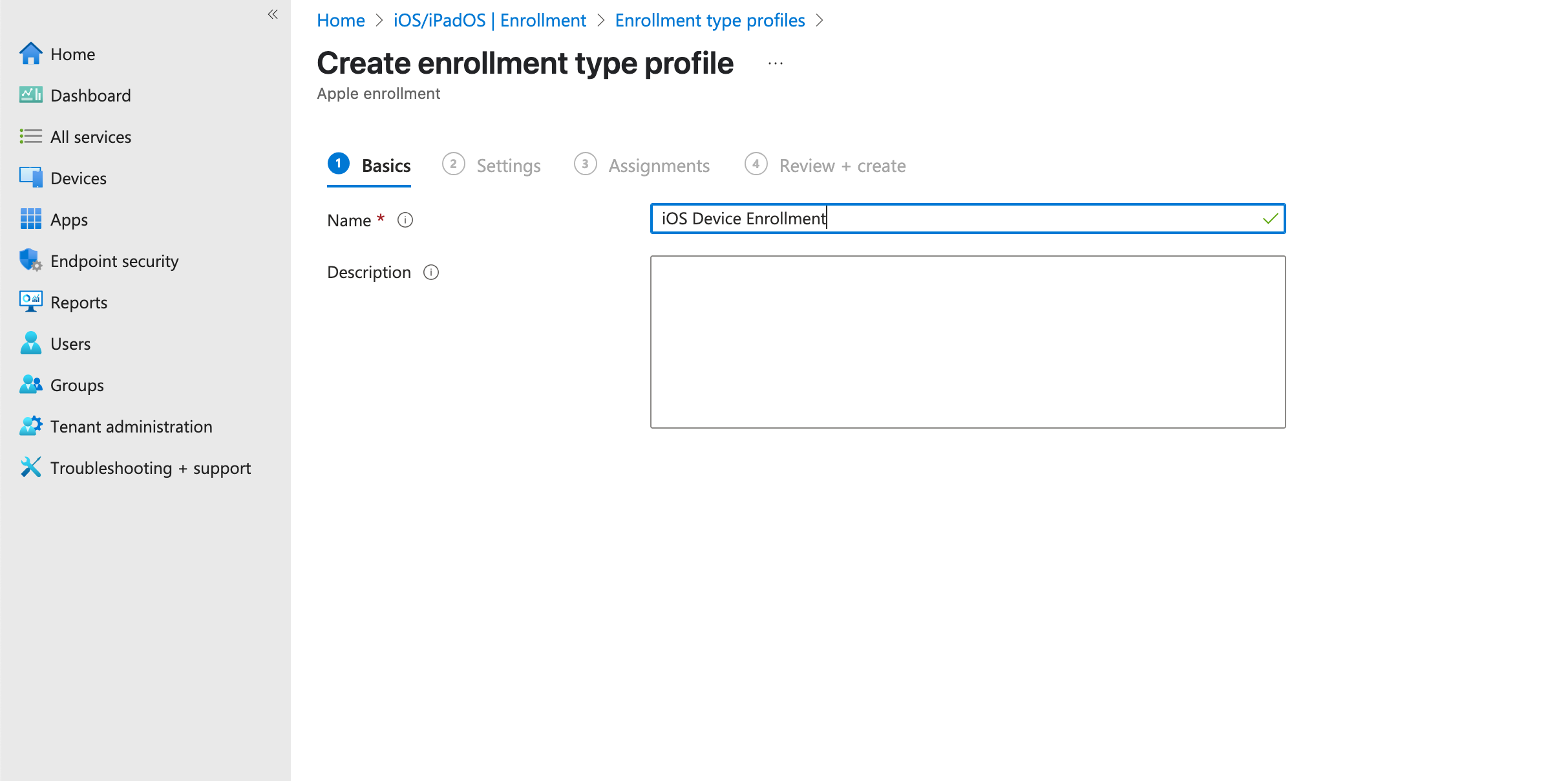

1. Set Up Device Enrollment Profile

Create iOS Enrollment Profile

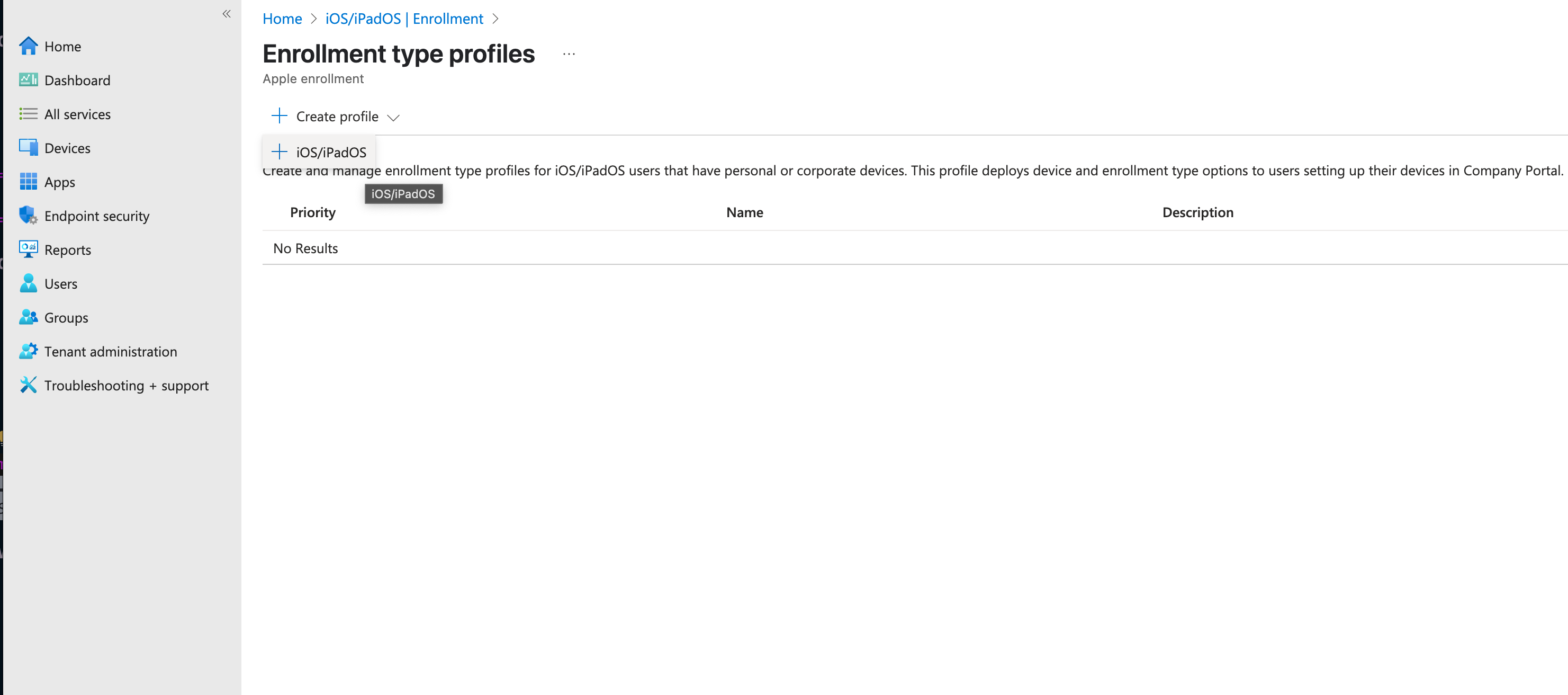

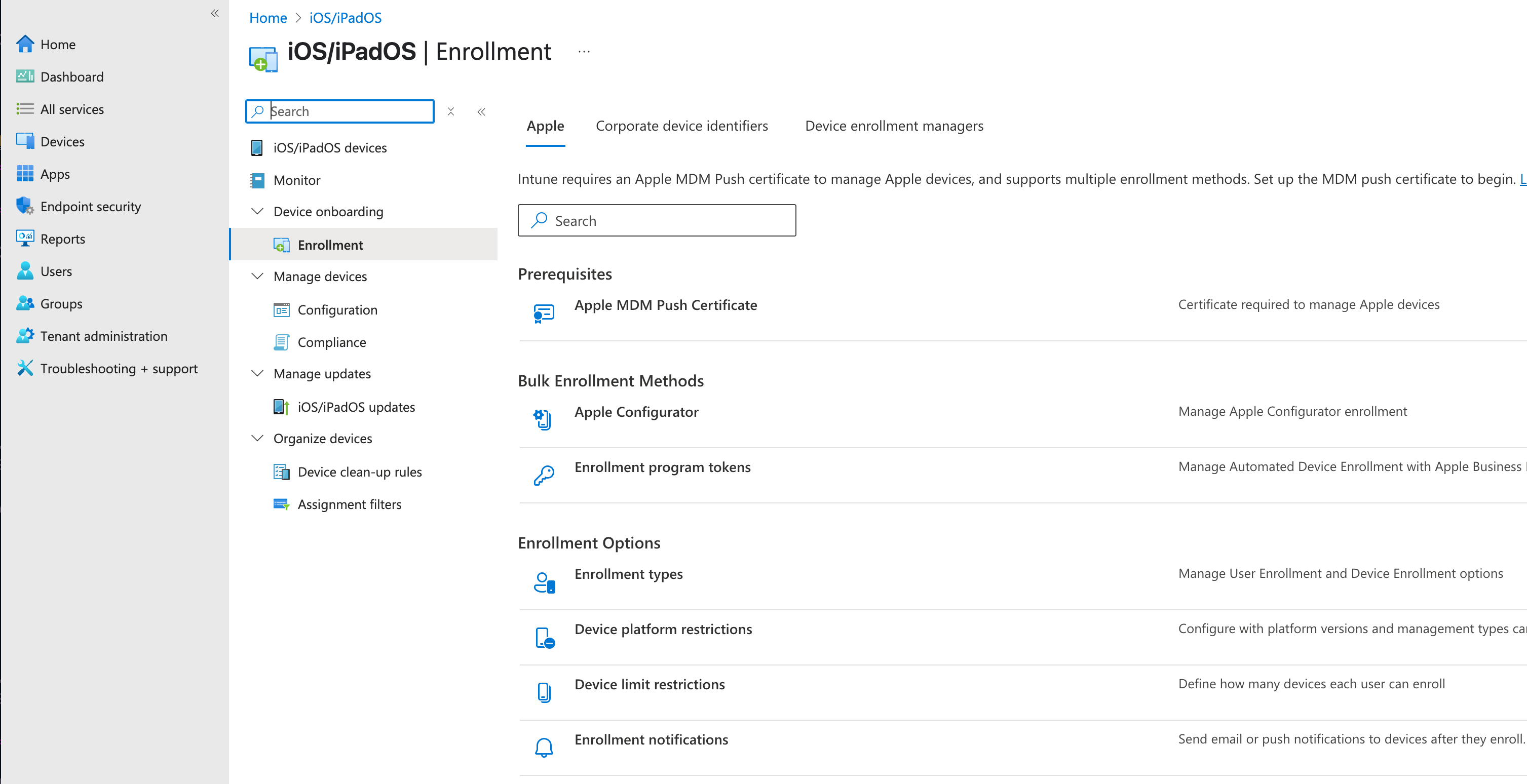

  • Navigate to Devices > iOS/iPadOS > Enrollment > Enrollment types.

  • Select Create profile.

  • Name: Enter "iOS Device Enrollment" (or similar descriptive name).

  • Profile type: Select "Device enrollment with Company Portal".

  • User affinity: Allow all users.

  • Select Create.

Click to reveal screenshots
azure11
azure12
azure13

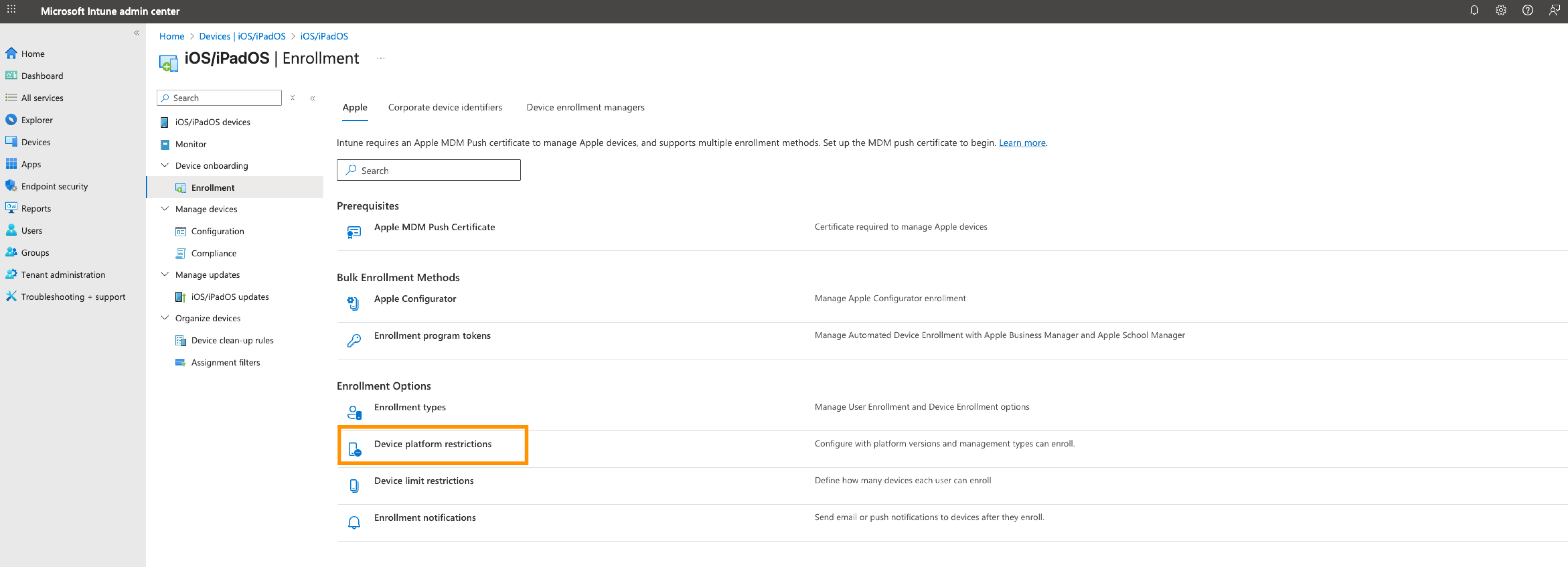

Verify Device Platform Restrictions

  • Navigate to Devices > Enrollment Options > Device platform restrictions.

  • Select All Users policy.

  • Verify that iOS platform is Allowed.

  • Ensure Personal owned devices are permitted.

  • Confirm no manufacturer restrictions are blocking Apple devices.

Click to reveal screenshot
image14a

2. Mobile Device Enrollment Process

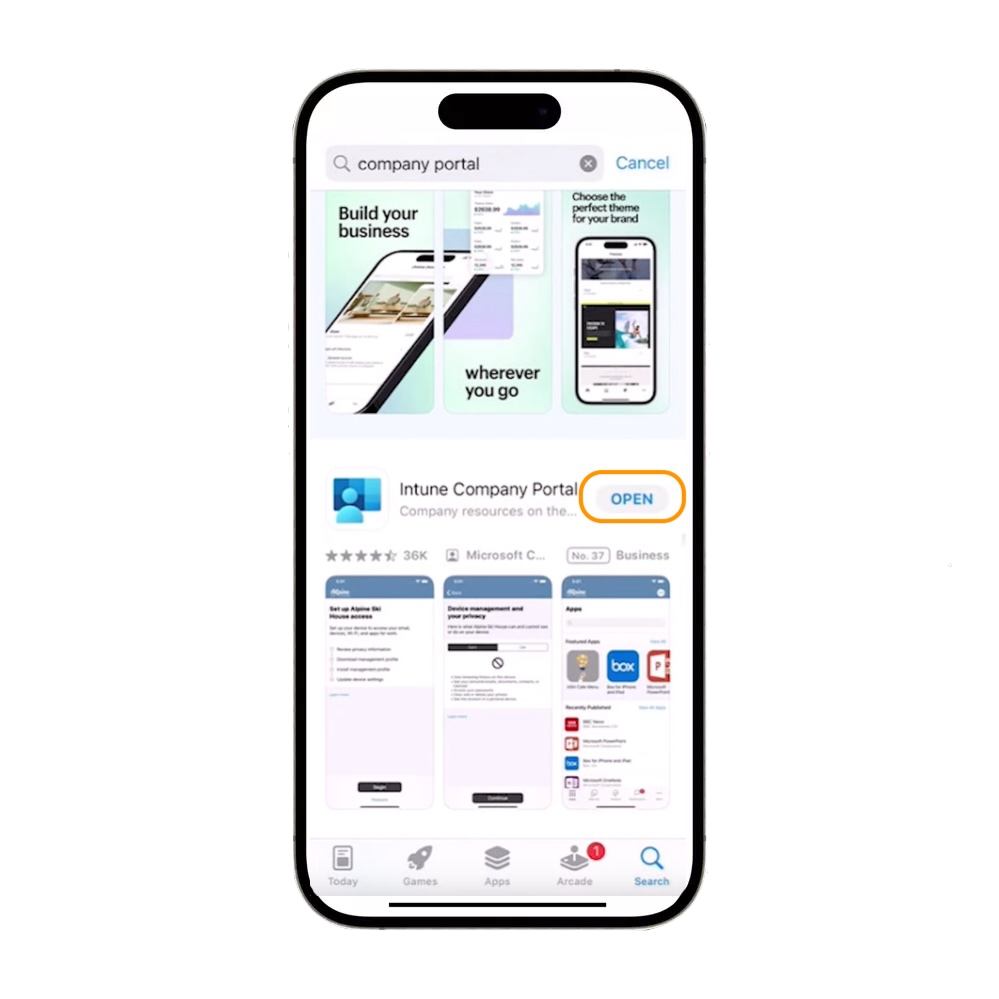

Install Company Portal App

  • On the mobile device, open the App Store.

  • Search for "Company Portal".

  • Download and install the Intune Company Portal app.

Click to reveal screenshot
azure15

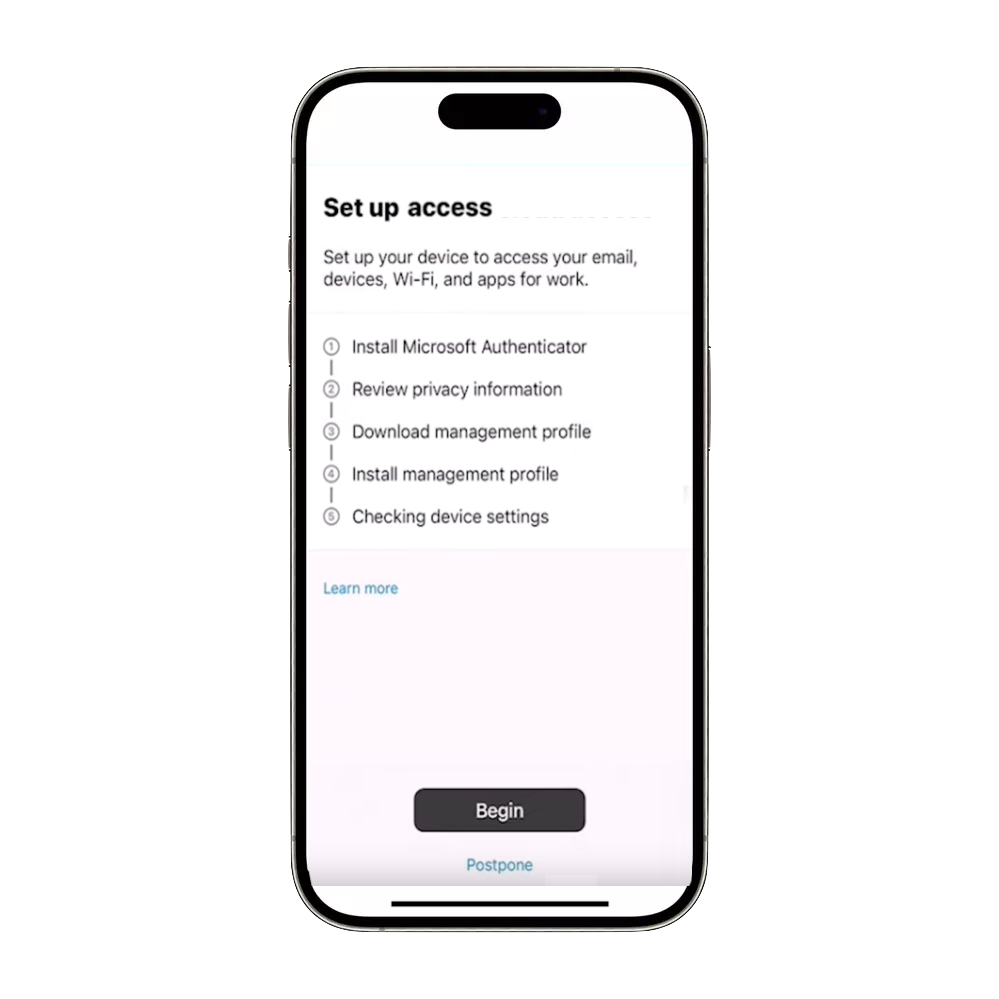

Initial Company Portal Setup

  • Open Company Portal app.

  • Sign in with organizational credentials (UPN format: user@example.com).

  • Follow the privacy and permissions prompts.

  • Select Begin to start the enrollment process.

Click to reveal screenshot
azure16

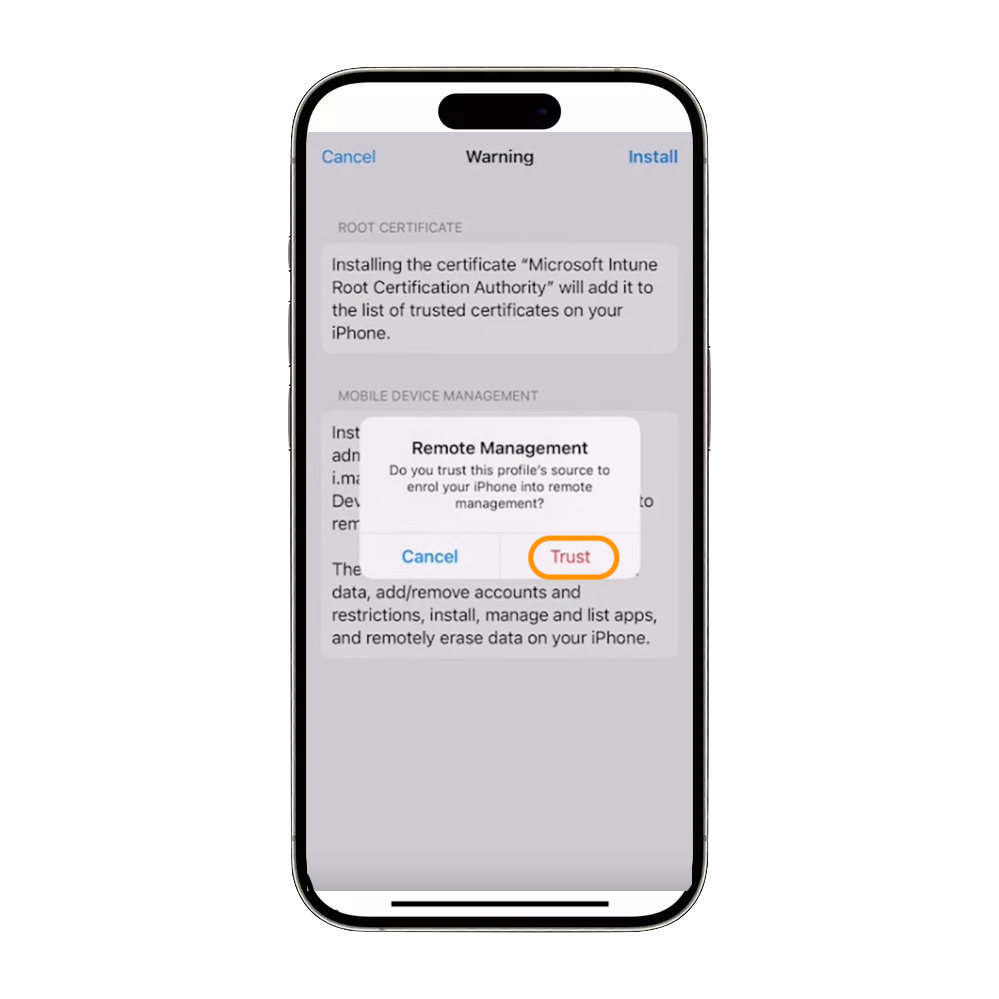

Install Management Profile

  • When prompted, go to device Settings > General > VPN & Device Management.

  • Select the management profile for your organization.

  • Tap Install and enter device passcode when prompted.

  • Confirm installation by tapping Install again.

  • Select Trust to complete the profile installation.

Click to reveal screenshot

azure17

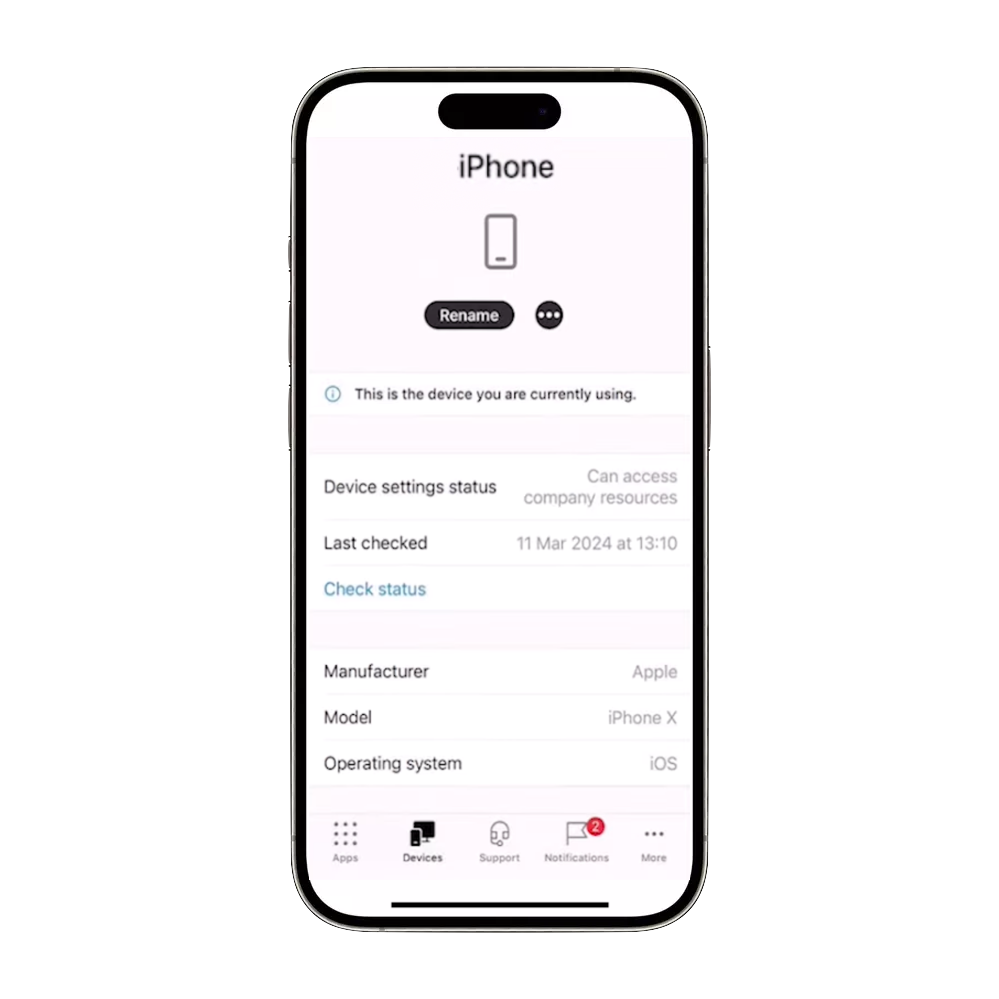

Complete Enrollment

  • Return to Company Portal app.

  • Tap Check Status to verify successful enrollment.

  • Device should now appear as compliant and managed.

Click to reveal screenshot

azure18

3. Verify Device Enrollment in Intune

Check Device Registration

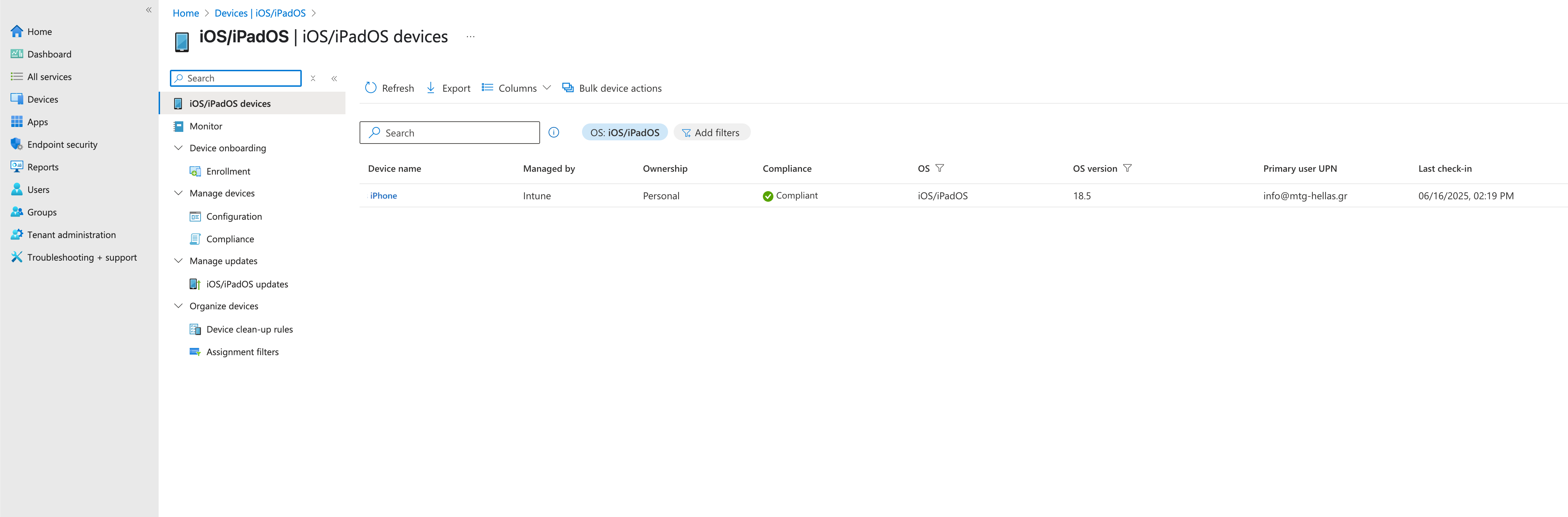

  • In Microsoft Endpoint Manager admin center, navigate to Devices > iOS/iPadOS > iOS/iPadOS devices.

  • Verify your enrolled device appears in the list.

  • Note: Device details (OS version, storage) may take several minutes to populate.

Click to reveal screenshot
azure19
Personal device enrollment (BYOD) provides limited management capabilities compared to corporate-owned devices. For enhanced control, consider Apple Business Manager integration for corporate device enrollment.
